Victory 36-inch Q2 Hood Insert Q2-36

VictorySKU: Q236

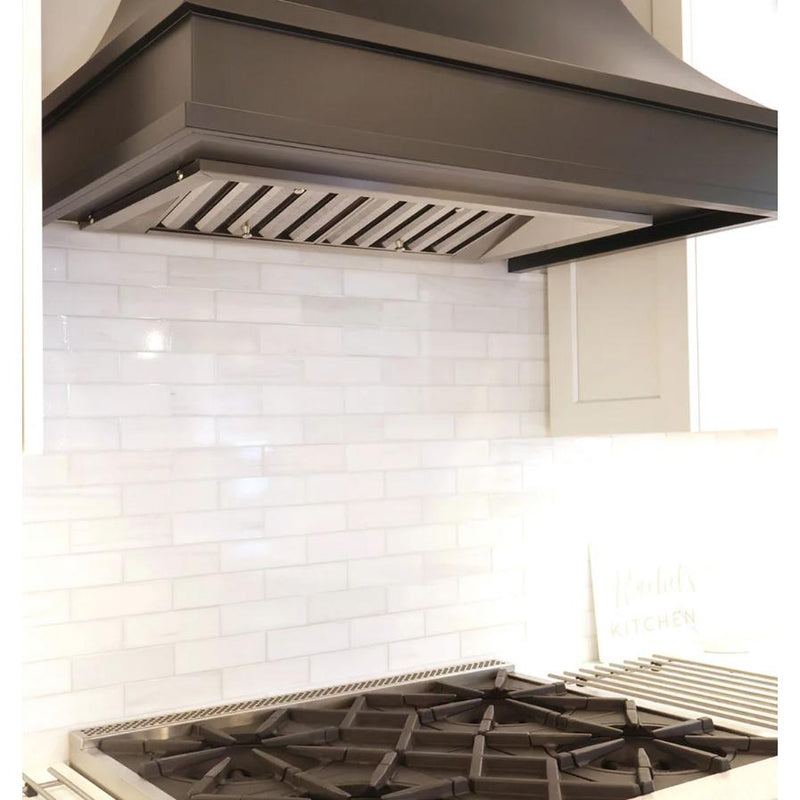

Designed and assembled in Canada, this range hood is made with high-quality mechanical switches, an all-metal blower, and stainless steel... Designed and assembled in Canada, this range hood is made with high-quality mechanical switches, an all-metal blower, and stainless steel filters making it efficient, easy to use, and easy to clean.Can be used with a standard 6" round duct or an 8" round duct for better performance and a quieter experience. the bright warm dimmable LED lights provide great visibility and the filters are dishwasher safe and reusable. Its 15" depth gives you better coverage over your cooking surface while still having a sleek slim design that makes it easy to build custom cabinets around. View more
Features Specifications Documents
Features
DISHWASHER SAFE STAINLESS STEEL FILTERS
Discover the Advantages of our Easy-to-Clean, Dishwasher Safe Stainless Steel Filters. Never replace a filter again.
DISHWASHER SAFE STAINLESS STEEL FILTERS
FULLY MECHANICAL
Enjoy Unbeatable Reliability with our Mechanical Rotary Knob Controls. A simpler, less complicated experience.
FULLY MECHANICAL
BRIGHT LED LIGHTING
Discover the long-lasting Brilliance of GU10 Bulbs, Easily Available at any Hardware Store. Illuminate Your World for those Special Moments.
BRIGHT LED LIGHTING
ALL-METAL IMPELLER with LIFETIME Warranty
Reliable Blower with a LIFETIME* Warranty: The Ultimate Choice for Long-lasting Performance. It's true that what's inside matters most.
ALL-METAL IMPELLER with LIFETIME Warranty
Specifications
General
Series Name
Q2
Blower Included
Yes
Airflow
700 CFM
Style
Custom Insert
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Features
Ducting Information
6" or 8" Round Exhaust
Speeds
4-Speed Mechanical Rotary Switch
Additional Information
• Top Vent (Optional Back Vent for Rear Exhaust)
• Hidden Switch Design
• 1 - 5.5 Sones
• Dimmable LED Lights
• Made with 1mm Stainless Steel
• Dishwasher Safe Stainless Steel Baffle Filters
• Motor Revolution: 800 RPM (±10%) to 1300 RPM (±10%)
• Maximum Airflow: 600 CFM / 700 CFM with 8" Duct
• Air Pressure: 150 Pa (200 Pa Maximum)
• Noise Level (sone): Approximately 0.9 to 6.3 (Lowest to highest Speed)
• Motor Type: Single Chamber Ultra Quiet
• Fan Type: Centrifugal
• Control Type: Mechanical, Rotary Switches
Electrical Information
Information
• Power Rating: 120V/60Hz (USA & Canada standard)
• General Input Power: 250 W (180W + 2x35W)
• Motor Input Power: 180 W
Dimensions
Class Width
36"
Width
34 inch(es) / 86.36 cm
Height
14.25 inch(es) / 36.2 cm
Depth
15 inch(es) / 38.1 cm
Warranty
Warranty
5 Year Parts
Documents
Owners Manual
Product Specifications
Dimensions Sheet
