Specifications
General
Color
White
Manufacturer Color
White
Power
Electric
Wi-Fi
Yes
Control Lock
Yes
Digital Display
Yes
Technologies

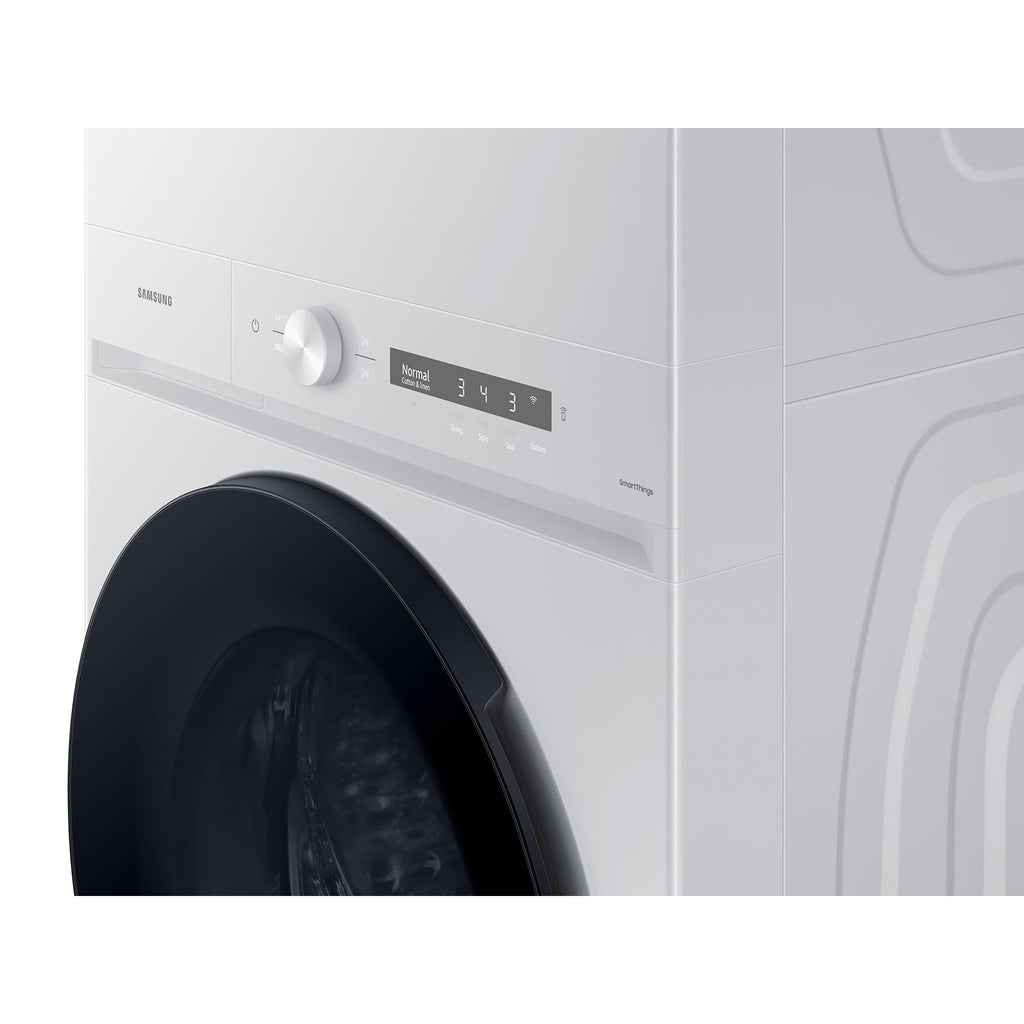

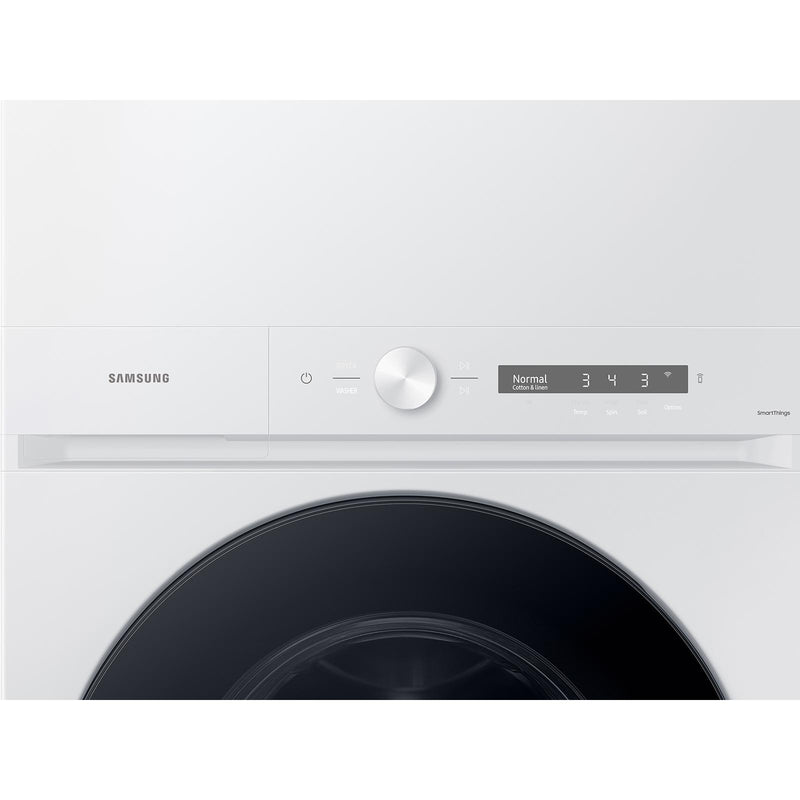

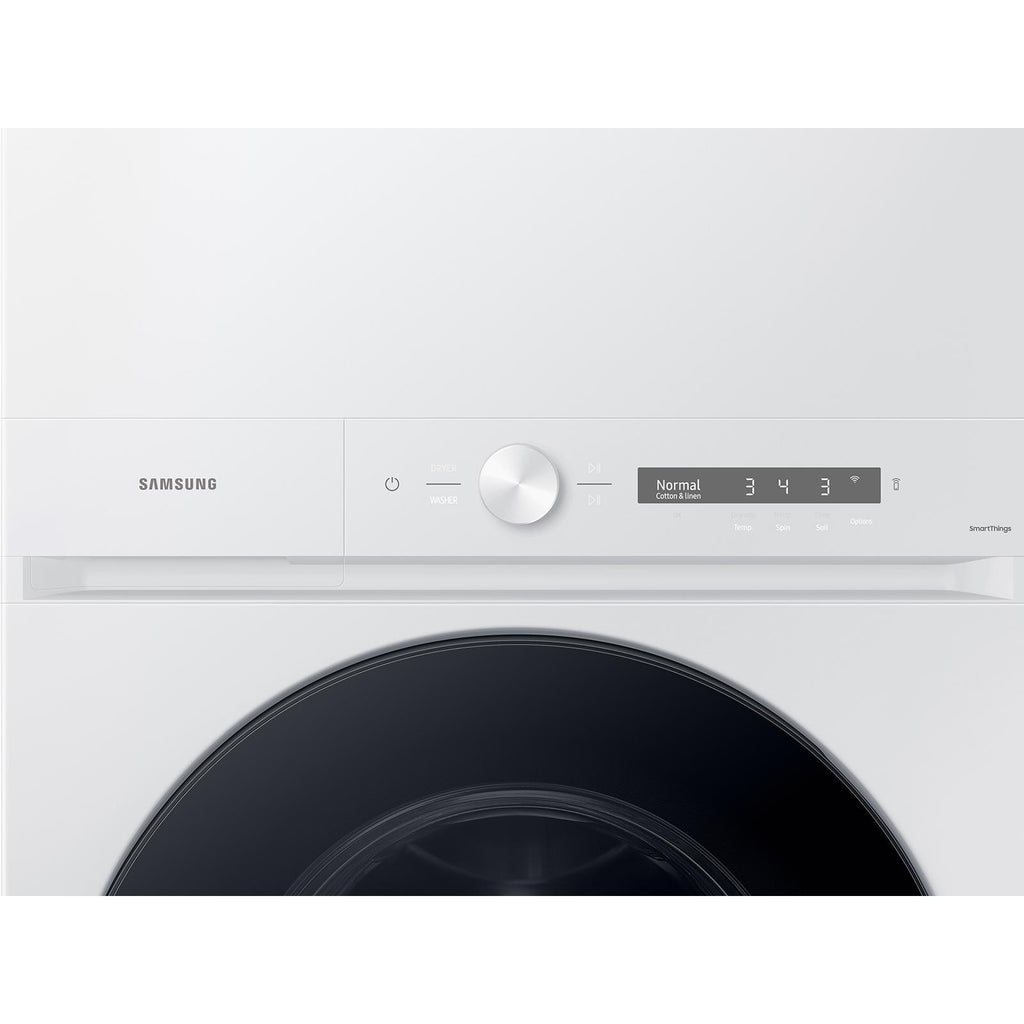

• Laundry Hub™ with Easy Reach Control Panel
• Wi-Fi Connectivity with SmartThings
• AI Smart Dial
• DIT Motor
• Wi-Fi Connectivity with SmartThings
• AI Smart Dial
• DIT Motor
Washer
Type
Front Load
Spin Speed
1200 rpm
Capacity DOE
4.6 cu. ft.
Number of Wash Cycles
23
Cycles
• Normal
• Heavy Duty
• Bedding
• Perm Press
• Delicates
• Activewear
• Wool
• Towels
• Eco Cold
• Rinse + Spin
• Self Clean+
• Small Load
• Colors
• Spin Only
• Outdoor
• Denim
• Steam Sanitize
• Steam Allergen
• Steam Normal
• Power Steam
• Steam Whites
• Steam Bulky
• Power Rinse
• Heavy Duty
• Bedding
• Perm Press
• Delicates
• Activewear
• Wool
• Towels
• Eco Cold
• Rinse + Spin
• Self Clean+
• Small Load
• Colors
• Spin Only
• Outdoor
• Denim
• Steam Sanitize
• Steam Allergen
• Steam Normal
• Power Steam
• Steam Whites
• Steam Bulky
• Power Rinse
Options
• Presoak
• Extra Rinse
• My Cycles
• Delay End
• Smart Control
• Super Speed
• Drum Light
• Child Lock
• AI Pattern
• Sel
• Extra Rinse
• My Cycles
• Delay End
• Smart Control
• Super Speed
• Drum Light
• Child Lock
• AI Pattern
• Sel

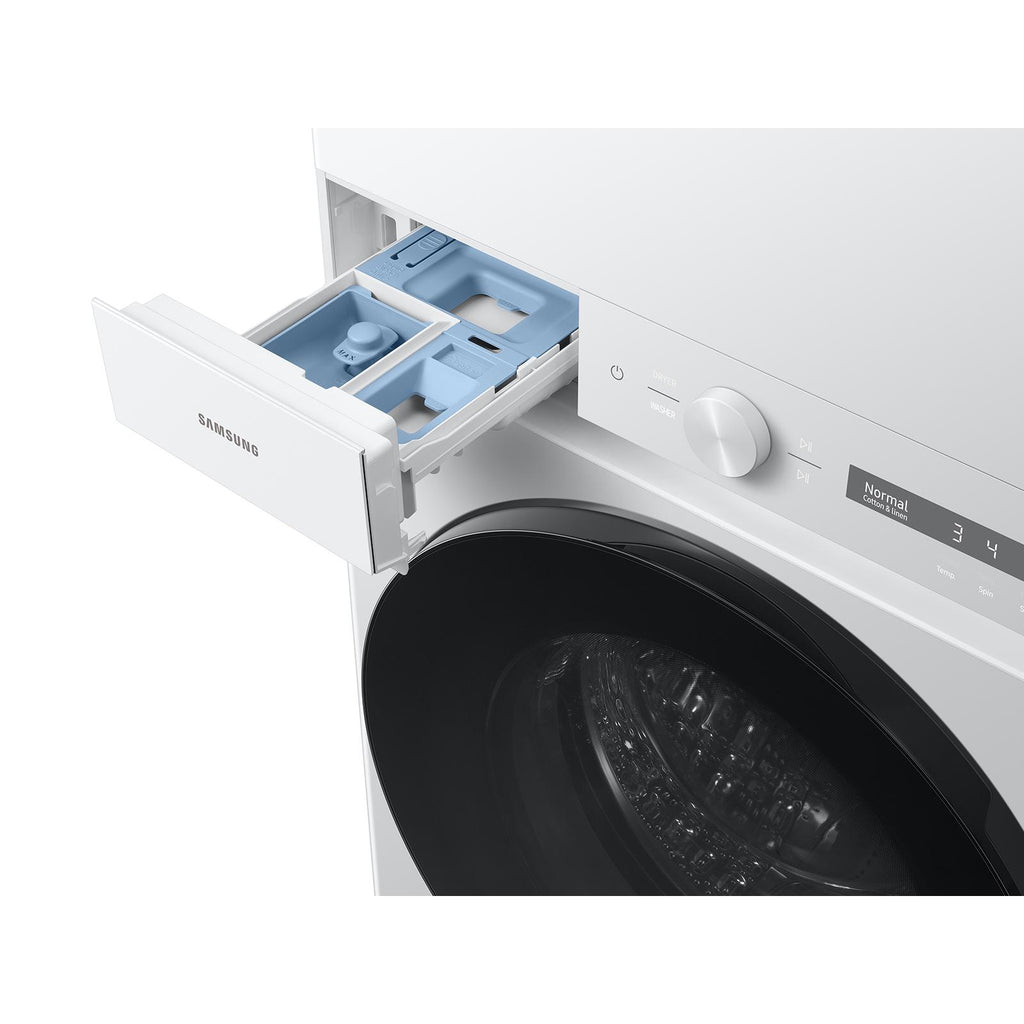

Dispenser
Dispenser Trays: Main Wash, Bleach, Softener
Additional Features
• 5 Temperature Settings: Extra Hot, Hot, Warm, Cold, Tap Cold
• 5 Spin Settings: Extra High, High, Medium, Low, Extra Low
• 5 Soil Settings: Extra Heavy, Heavy, Normal, Light, Extra Light
• 5 Spin Settings: Extra High, High, Medium, Low, Extra Low
• 5 Soil Settings: Extra Heavy, Heavy, Normal, Light, Extra Light
Dryer
Type
Vented
Capacity
7.6 cu. ft.
Number of Cycles
16
Cycles
• Eco Normal
• Normal
• Heavy Duty
• Towels
• Perm Press
• Activewear
• Bedding
• Delicates
• Wool
• Sanitize
• Shirts
• Denim
• Time Dry
• Air Fluff
• Small Load
• Rack Dry
• Normal
• Heavy Duty
• Towels
• Perm Press
• Activewear
• Bedding
• Delicates
• Wool
• Sanitize
• Shirts
• Denim
• Time Dry
• Air Fluff
• Small Load
• Rack Dry
Options
• Damp Alert
• Wrinkle Prevent
• My Cycles
• Smart Control
• Eco Dry
• Drum Light
• Child Lock
• Volume
• AI Pattern
• Wi-Fi
• Language
• Vent Blockage Test
• Factory Reset
• Wrinkle Prevent
• My Cycles
• Smart Control
• Eco Dry
• Drum Light
• Child Lock
• Volume
• AI Pattern
• Wi-Fi
• Language
• Vent Blockage Test
• Factory Reset
Temperature Settings
5
Sensor Dry
Yes
Additional Features
• 5 Temperature Settings: High, Medium, Medium Low, Low, Extra Low
• 5 Drying Levels: Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
• Drum Light
• Lint Filter Alert
• 5 Drying Levels: Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
• Drum Light
• Lint Filter Alert
Electrical Information
Additional Information
• Washer:
• 120 V / 60 Hz
• 15 Amps
• Dryer:
• 608 kWh/yr
• 240 V / 60 Hz
• 30 Amps
• 120 V / 60 Hz
• 15 Amps
• Dryer:
• 608 kWh/yr
• 240 V / 60 Hz
• 30 Amps
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Width
27 inch(es) / 68.58 cm
Height
74.44 inch(es) / 189.07 cm
Depth
31.37 inch(es) / 79.69 cm
Weight
319.69 lb(s) / 145.01 kg
Shipping Dimensions
Width
29.37 inch(es) / 74.61 cm
Height
81.94 inch(es) / 208.12 cm
Depth
34.12 inch(es) / 86.67 cm
Weight
330.69 lb(s) / 150 kg
Warranty
Warranty
• Washer:
• One (1) Year Parts and Labor
• Three (3) Years Stainless Steel Tub (Part Only)
• Twenty (20) Years; Washing DIT (Digital Inverter
• Motor) Motor Part (Part Only)
• Dryer: One (1) Year Parts and Labor
• One (1) Year Parts and Labor
• Three (3) Years Stainless Steel Tub (Part Only)
• Twenty (20) Years; Washing DIT (Digital Inverter
• Motor) Motor Part (Part Only)
• Dryer: One (1) Year Parts and Labor
