Features
NSF® CERTIFIED
Sanitize cycle removes 99.9% of common household bacteria.

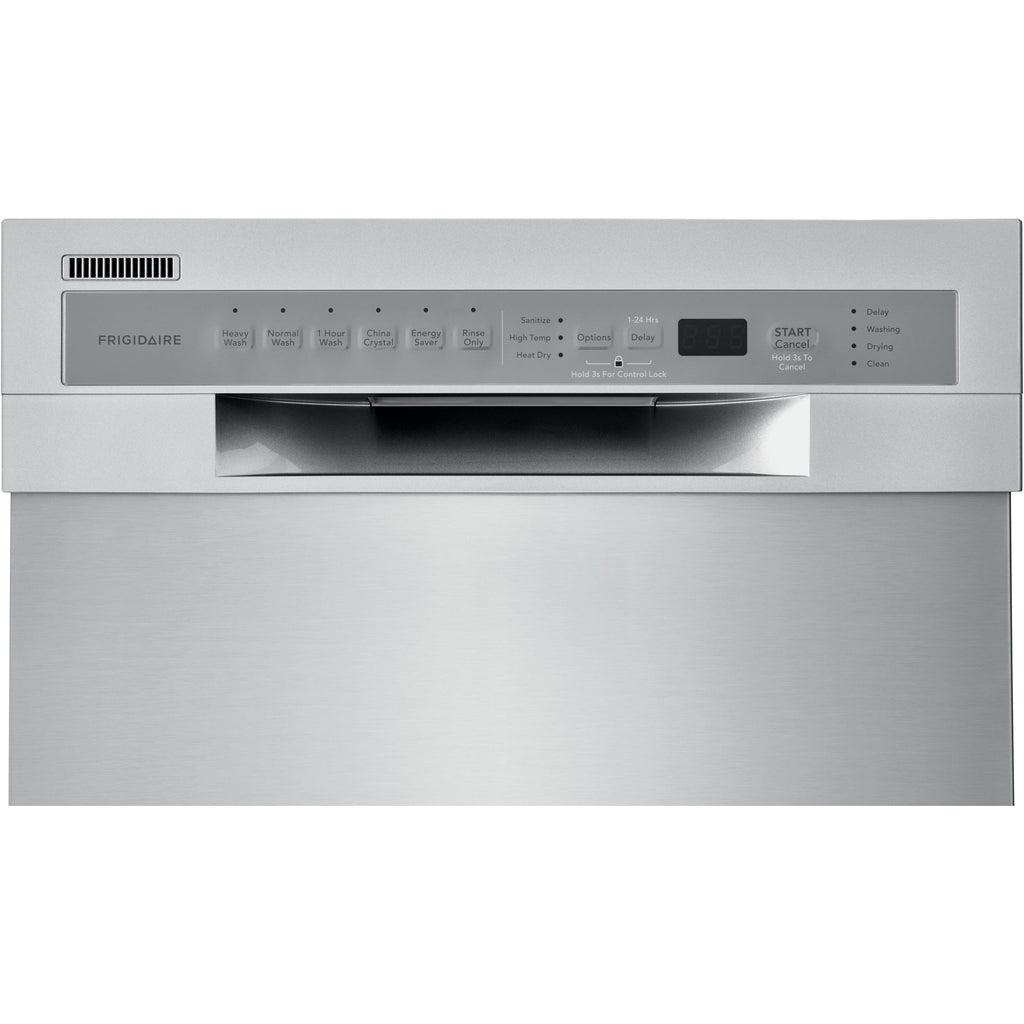

READY-SELECT® CONTROLS
FILTRATION SYSTEM
Self-cleaning filter eliminates food particles, keeping dishes clean.
A THOROUGH CLEAN EVERY TIME

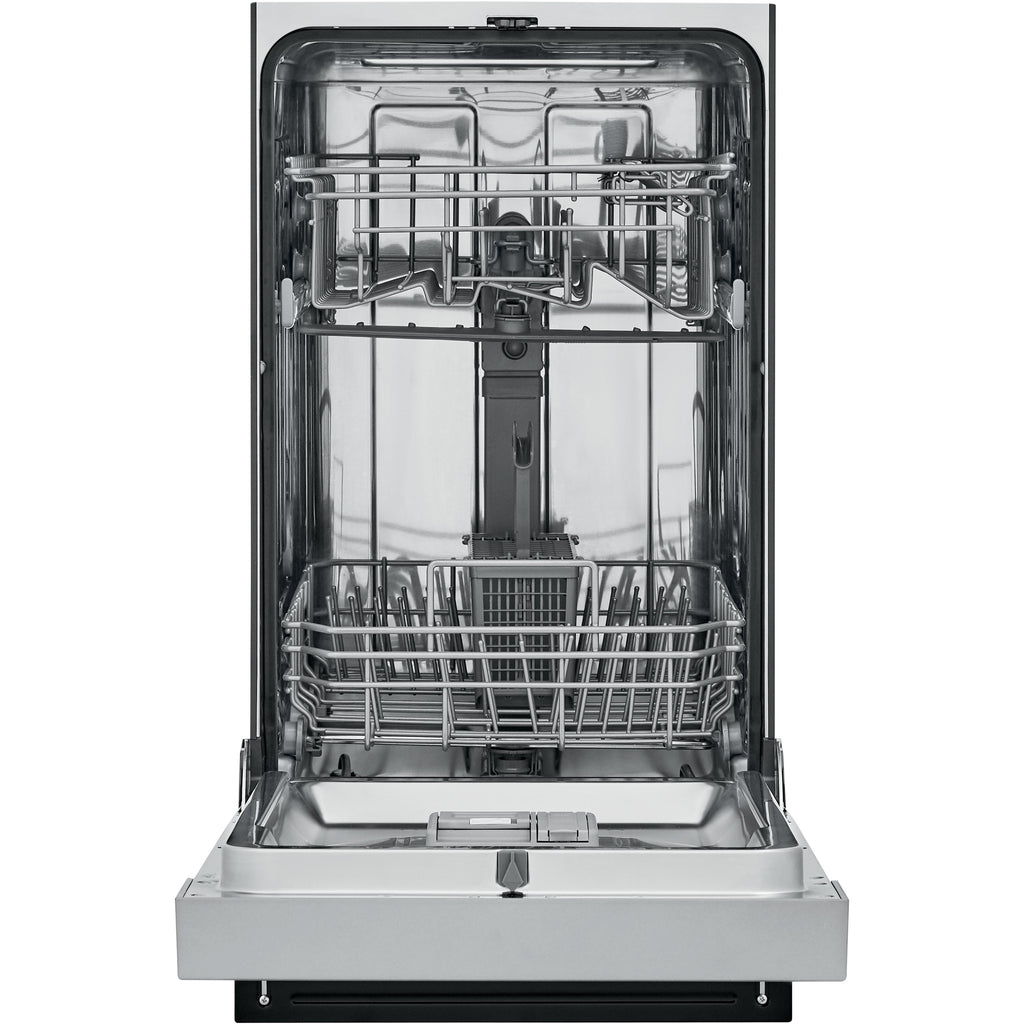

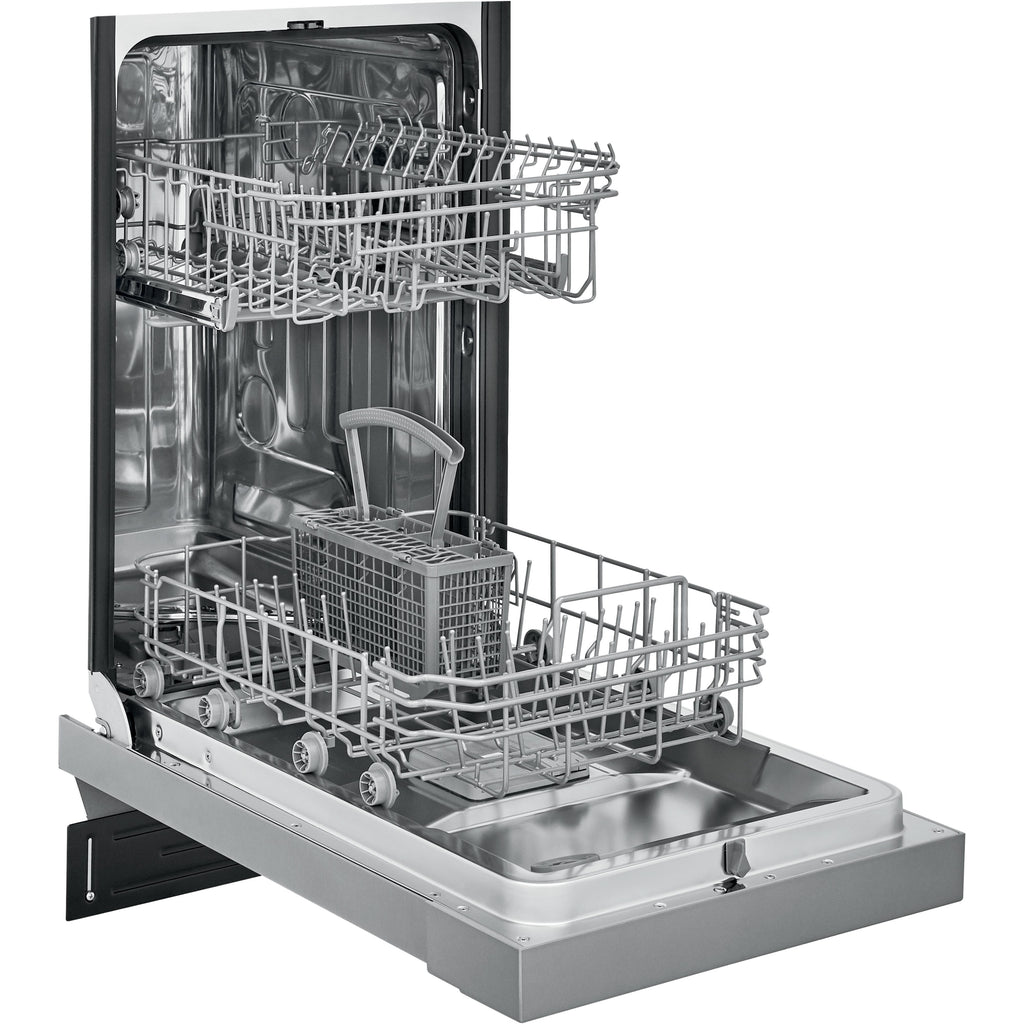

Top and bottom rack dual spray arm system gives you a thorough clean every time.
MULTIPLE CLEANING CYCLE OPTIONS
Features easy-to-use cleaning cycle options for your different cleaning needs including Energy Saver, Heavy Wash, and Rinse Only
Specifications
General
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
8
Tub Material
Stainless Steel
Silence Rating
52 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• PowerPlus™ (Heavy)
• Normal
• Rinse Only
• China / Crystal
• 1 Hr Wash
• Energy Saver
• Normal
• Rinse Only
• China / Crystal
• 1 Hr Wash
• Energy Saver
Options
• Heat
• No Heat Dry
• Hi-Temp Wash
• Delay Start 1-24 Hours
• Sanitize
• No Heat Dry
• Hi-Temp Wash
• Delay Start 1-24 Hours
• Sanitize
Features
Technologies
• Ready-Select® Control
• UltraQuiet™ I Sound Reduction System
• PowerPlus™
• UltraQuiet™ I Sound Reduction System
• PowerPlus™
Delay Start Information
1-24 Hours
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Stay-Put Door Hinge Design
• Low Rinse-Aid Indicator Light
• 4 Wash Levels
• 5 Wash Speeds
• Hard Food Disposer
• Cycle Indicator Light
• Nylon Rack Coating
• Low Rinse-Aid Indicator Light
• 4 Wash Levels
• 5 Wash Speeds
• Hard Food Disposer
• Cycle Indicator Light
• Nylon Rack Coating
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Certifications and Approvals
Energy Star Certified
Yes
NSF® Certified
Yes
ADA Compliant
Yes
Dimensions
Class Width
18"
Width
17.62 inch(es) / 44.76 cm
Height (Min.)
32.5 inch(es) / 82.55 cm
Depth (Without Handle)
23 inch(es) / 58.42 cm
Weight
63.01 lb(s) / 28.58 kg
Additional Dimensions
• Depth with Door Open 90 Degrees: 46"
• Cutout Height (Min.): 33-1/2"
• Cutout Height (Max.): 35-1/4"
• Cutout Width (Min.): 17-5/8-18"
• Cutout Depth (Min.): 24"
• Cutout Height (Min.): 33-1/2"
• Cutout Height (Max.): 35-1/4"
• Cutout Width (Min.): 17-5/8-18"
• Cutout Depth (Min.): 24"
Shipping Dimensions
Weight
71.01 lb(s) / 32.21 kg
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
012505115738
