Features
RACKMATIC®

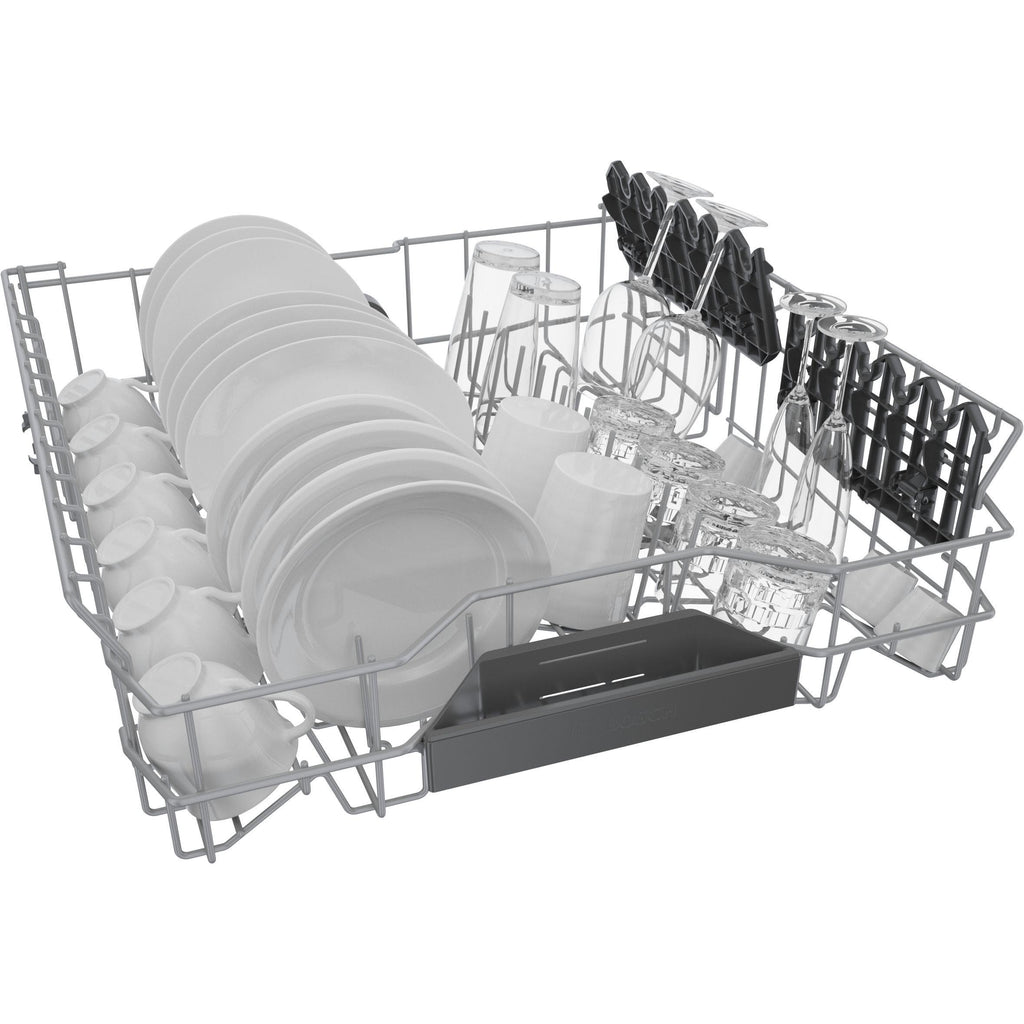

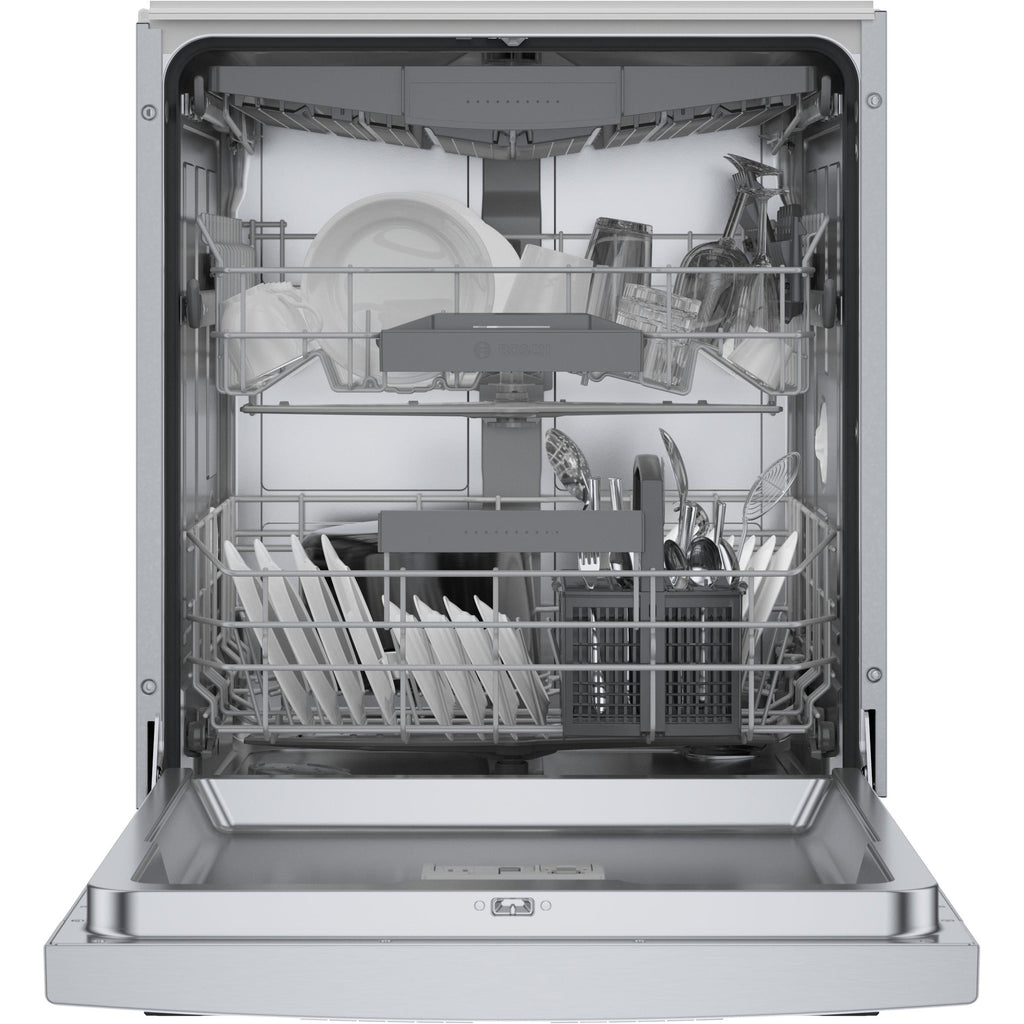

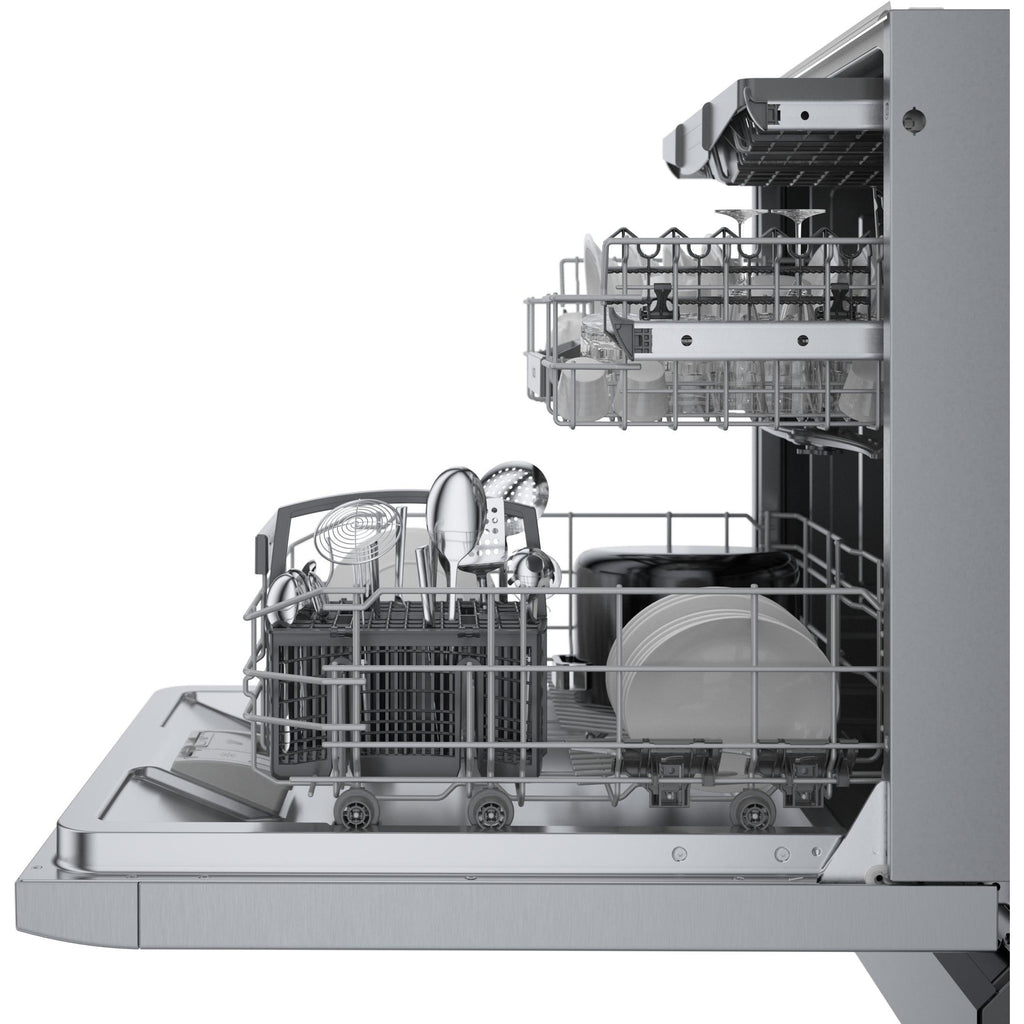

The RackMatic middle rack easily adjusts to three different heights and up to 9 separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
AQUASTOP® PLUS

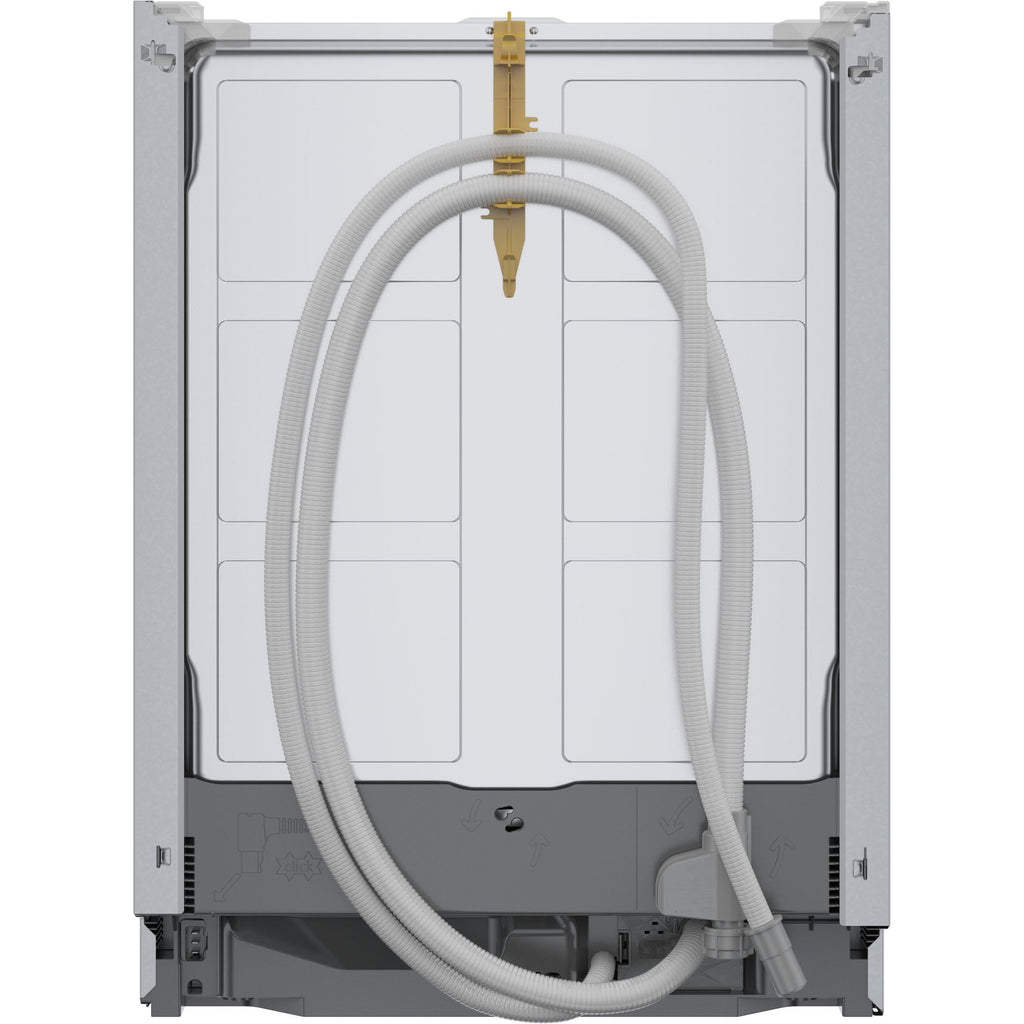

A Bosch exclusive, AquaStop® Plus detects leaks in the solid molded base of the dishwasher, shuts down operation and automatically pumps out water so it cannot make contact with the floor. Additionally, an electro valve at the water tap and a double-walled hose system makes AquaStop® Plus the most comprehensive safety system available.
WATER SOFTENER
The water softener removes hard water spots caused by lime deposits and softens water to the appropriate level for superior washing results.
PRECISIONWASH®
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
CRYSTALDRY™
At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry™ technology transforms moisture into heat up to 176°F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry. Drying performance may vary by dish type.
Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Intensive
• Auto
• Economy
• Glass 40°C
• Quick Wash 45°C
• Custom program
• Auto
• Economy
• Glass 40°C
• Quick Wash 45°C
• Custom program
Features
Technologies
• Home Connect™ (Wi-Fi enabled)
• CrystalDry™ Drying System
• 24/7 AquaStop® Plus
• 3-step RackMatic®
• PrecisionWash®
• CrystalDry™ Drying System
• 24/7 AquaStop® Plus
• 3-step RackMatic®
• PrecisionWash®
Delay Start Information
24 Hours
Delay Start
Yes

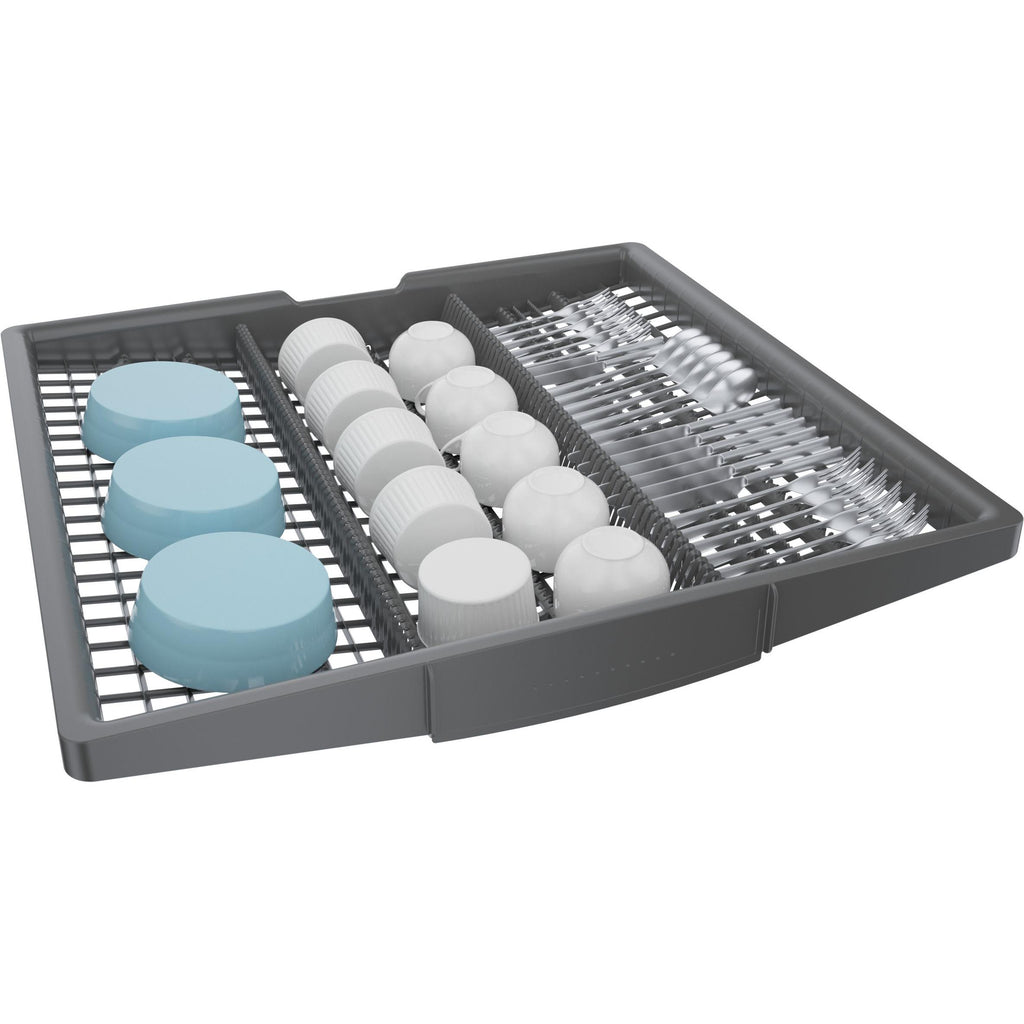

3rd Rack System
Yes
Control Lock
Yes
Wi-Fi
Yes
Additional Information
• Water Softener
• Five-Level Wash
• 5 Options
• Concealed Water Heating Element
• Five-Level Wash
• 5 Options
• Concealed Water Heating Element
Electrical Information
Information
• 1440 W
• 120 V
• 60 Hz
• 12 A
• 120 V
• 60 Hz
• 12 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
32.09 inch(es) / 81.5 cm
Depth (Without Handle)
22.56 inch(es) / 57.3 cm
Weight
106.04 lb(s) / 48.1 kg
Additional Dimensions
Required Cutout Size (HxWxD): 32 1/8" x 24" x 24"
