Specifications
General
Type
Vented
Power Source
Electric
Color
Black
Manufacturer Color
Matte Black
Tub Material
Aluminized Steel
Capacity
Capacity
7.3 cu. ft.
Cycle Information
Number of Cycles
24
Dry Cycles
• AI Dry
• Antibacterial
• Blanket Refresh
• Large Load Dry
• Easy Ironing
• Jeans
• X Large Load Dry
• Overnight Dry
• Rack Dry
• Quick Dry
• Timed Dry
• Towels
• Wrinkle Prevention
• SteamSanitary™
• Air Dry
• SteamFresh™
• Heavy Duty
• Low Temp Dry
• Perm. Press
• Super Dry
• Bedding
• Delicates
• Normal
• Small Load
• Antibacterial
• Blanket Refresh
• Large Load Dry
• Easy Ironing
• Jeans
• X Large Load Dry
• Overnight Dry
• Rack Dry
• Quick Dry
• Timed Dry
• Towels
• Wrinkle Prevention
• SteamSanitary™
• Air Dry
• SteamFresh™
• Heavy Duty
• Low Temp Dry
• Perm. Press
• Super Dry
• Bedding
• Delicates
• Normal
• Small Load
Options
• Additional Settings
• WI-FI Connection
• Control Lock
• Cycle List Edit
• Cycle Optimization
• Low Static
• Settings
• Factory Reset
• Smart Diagnosis
• Steam
• Language
• Damp Signal
• Drum Light
• Dryness
• Remote Start
• Energy Saver
• Signal
• Temp.
• Time
• Wrinkle Care
• WI-FI Connection
• Control Lock
• Cycle List Edit
• Cycle Optimization
• Low Static
• Settings
• Factory Reset
• Smart Diagnosis
• Steam
• Language
• Damp Signal
• Drum Light
• Dryness
• Remote Start
• Energy Saver
• Signal
• Temp.
• Time
• Wrinkle Care
Features
Technologies

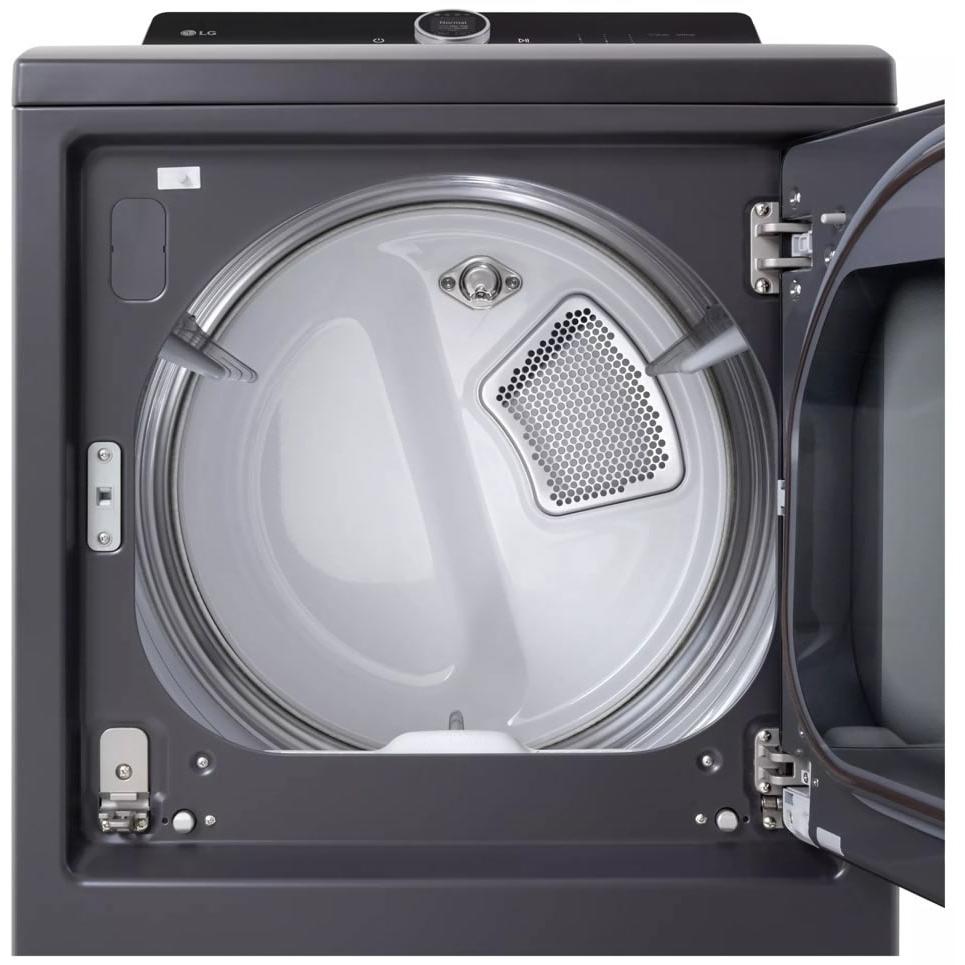

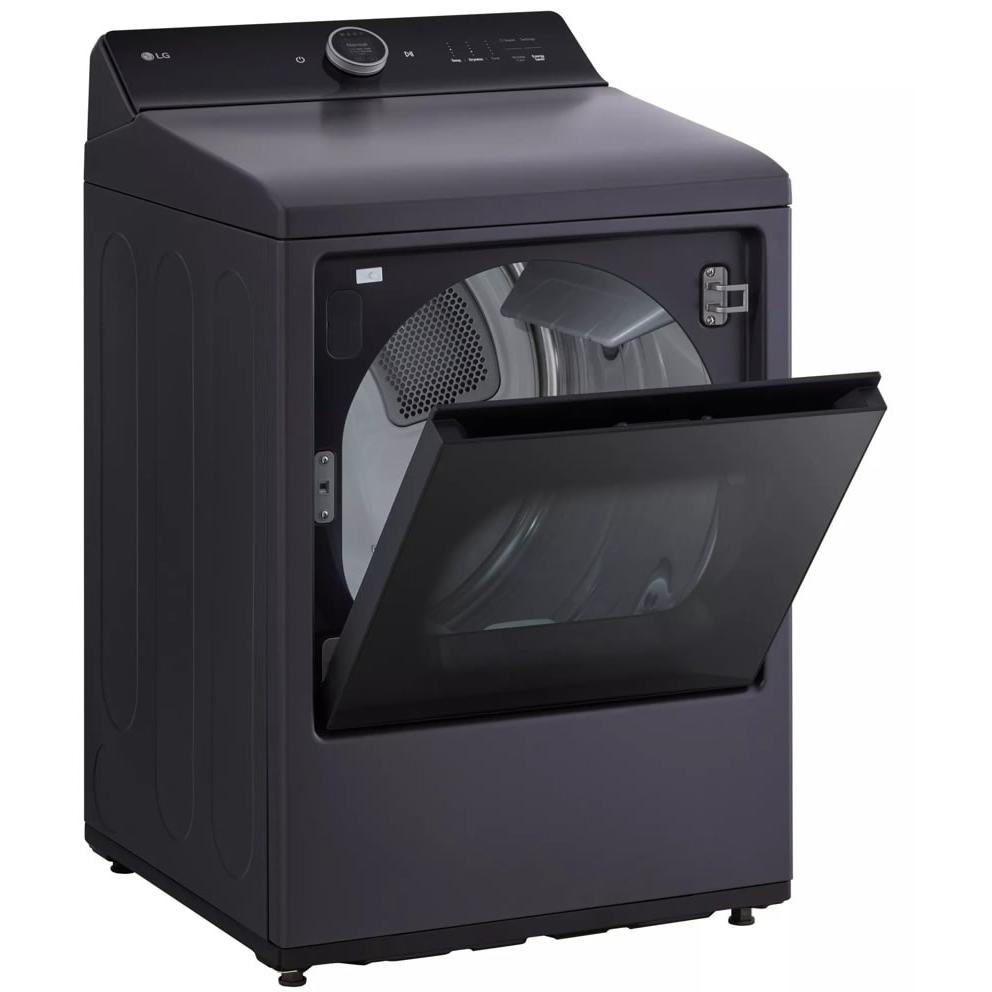

• EasyLoad® Door
• Dial-A-Cycle™
• AI Sensor Dry™
• Smart Pairing
• SmartDiagnosis™ (v3.0)
• Energy Monitoring
• ThinQ Care™
• Wi-Fi
• ThinQ UP™

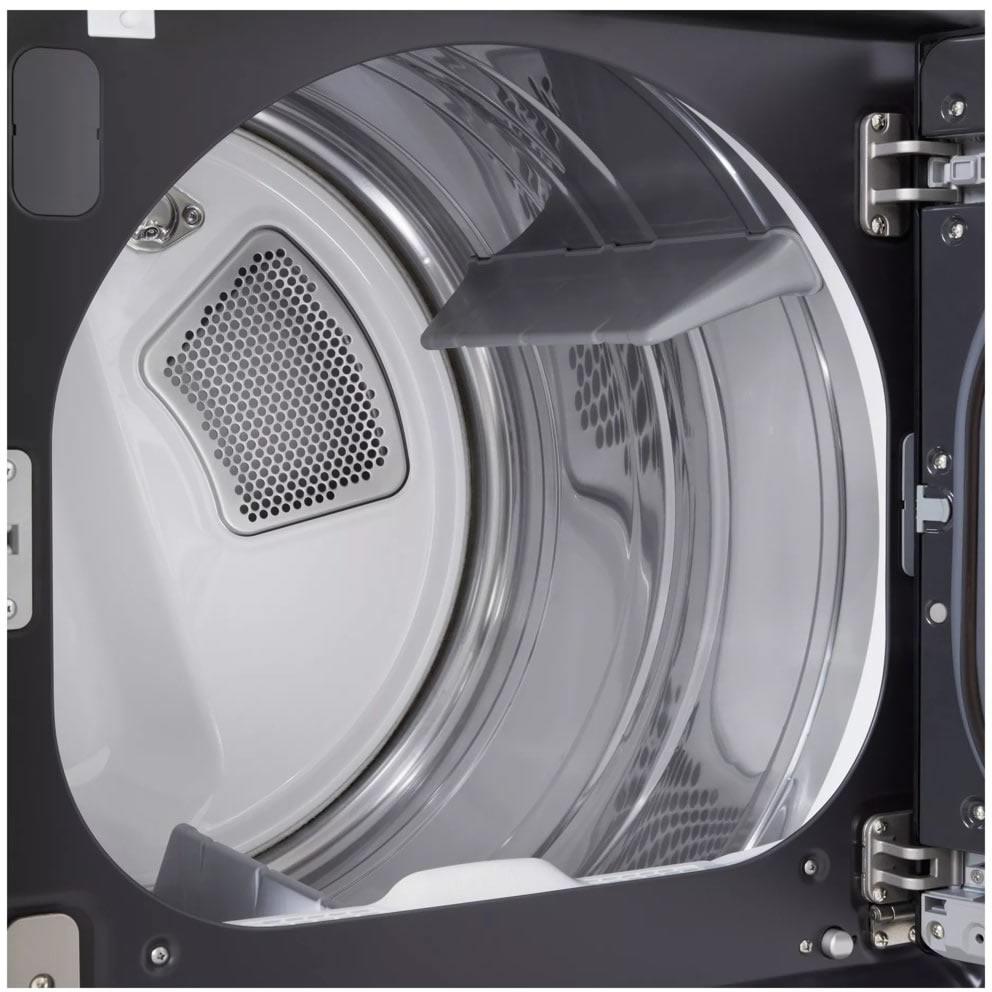

• NeveRust™ Stainless Steel Drum
• LoDecibel™ Quiet Operation
• FlowSense™ Duct Clogging Indicator
• Dial-A-Cycle™
• AI Sensor Dry™
• Smart Pairing
• SmartDiagnosis™ (v3.0)
• Energy Monitoring
• ThinQ Care™
• Wi-Fi
• ThinQ UP™
• NeveRust™ Stainless Steel Drum
• LoDecibel™ Quiet Operation
• FlowSense™ Duct Clogging Indicator
Dryness Levels
• Damp
• Less
• Normal
• More
• Very
• Less
• Normal
• More
• Very
Temperature Settings
• Low
• Med. Low
• Normal
• Med. High
• High
• Med. Low
• Normal
• Med. High
• High
Number of Temperature Settings
4
Wi-Fi
Yes
Steam Cycle
Yes
Control Lock
Yes
Light
Yes
Digital Display
Yes
Reversible Door
Yes
Sensor Dry
Yes
Additional Information
• Precise Temperature Control with Variable Heater
• 3 Minute Installation Check
• Remote Start and Cycle Monitor
• End of Cycle Signal
• 4 Adjustable Legs
• Remaining Time Display/Status Indicator(s)
• 3 Minute Installation Check
• Remote Start and Cycle Monitor
• End of Cycle Signal
• 4 Adjustable Legs
• Remaining Time Display/Status Indicator(s)
Electrical Information
Information
• 240 V
• 30 A
• 30 A
Certifications and Approvals
Energy Star Certified
Yes
Additional Information
CSA Listed
Accessories
Optional
• Side Venting Kit: 383EEL9001B
• LP Conversion Kit: 383EEL3002R
• LP Conversion Kit: 383EEL3002R
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
42.75 inch(es) / 108.59 cm
Depth
29.25 inch(es) / 74.3 cm
Weight
121.3 lb(s) / 55.02 kg
Additional Dimensions
50 1/2" D with door open
Shipping Dimensions
Width
29.12 inch(es) / 73.97 cm
Height
45.5 inch(es) / 115.57 cm
Depth
31.5 inch(es) / 80.01 cm
Weight
125.6 lb(s) / 56.97 kg
Warranty
Warranty
• 1-Year Parts and Labor
• 3 Years Drum
• 3 Years Drum
UPC
UPC#
195174062432
